Nui Shibori Table Quilt

Fabric Dyeing has been a fun, creative way to make unique fabrics for my quilting.  This spring, I spent some time playing around with stitched shibori.  I wanted to figure out how to create drawings in the dye.  I also wanted to try hand painting before and after dyeing the fabric.

So, I set out to do a few experiments.

Experiment #1. Nui Shibori flower and over-dyeing painted fabric

  • Draw pattern on the fabric with a water soluble fabric marker
  • Stitch the drawn lines  with polyester thread
  • Dissolve Dye in 1 ml Urea Water, Add 2 T Print Paste, 14 ml Urea Water, 1/8 tsp Mixed Alkali, Mix well
  1.               Dark Pink = ¼ tsp Mixing Red
  2.               Light Pink = 1/16 tsp Mixing Red
  3.               Dark Blue = ¼ tsp Mixing Blue
  4.               Light Blue = 1/16 tsp Mixing Blue
  5.               Green = 1/8 tsp Evergreen

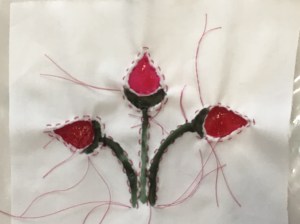

  • Paint dye on fabric areas within the shibori stitching

IMG_2592

  • Paint dye in sections for over-dyeing

Dye Paint



  • Allow to dry for 4 hours
  • Pull center threads and tie off

IMG_2589

  • Place in 1000 ml of 0.15 mg/ml Mixing Blue Dye (with Soda Ash)
  • Batch for 5 hours
  • Wash with Blue Dawn, Dry and Iron

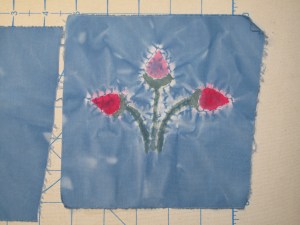

IMG_2593

Dye Paint Overdye

Lessons Learned:

  • Shibori pattern turned out well
  • Dye painting turned out well, but the the color edges were too crisp – use less Print Paste next time
  • Over-dyeing does not change the underlying painted color very much

Experiment #2.  Whole Cloth Pattern:

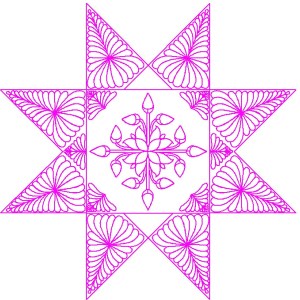

  • Design quilting using QuiltCAD program

Capture

  • Stitch section outlines on long arm with polyester thread for pattern placement when quilting

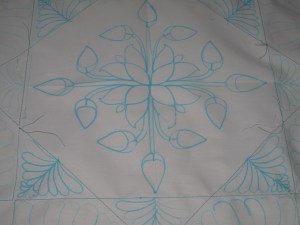

  • Draw shibori pattern by holding water soluble marker in the needle position and running pattern on trace

IMG_2636IMG_2638

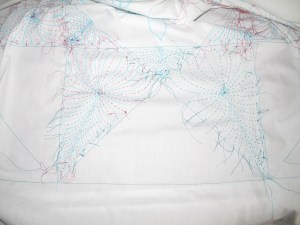

  • Hand stitch shibori sections

IMG_2642



  • Dye Paint:
  1. Mixed Alkali: ½ tsp mixed with 8 ml Urea water
  2. Yellow: 1/8 tsp Golden Yellow in 10 ml Urea water; Combine 1 ml concentrate with 6 ml Print Paste, 3 ml Urea water and 0.6 ml Mixed Alkali
  3. Green: 1/8 tsp Evergreen in 15 ml Urea Water. Combine 7.5 ml concentrate with 15 ml PP and 1.5 ml MA
  4. Dark Pink: 1/8 tsp MR in 15 ml Urea water.  Combine 7.5 ml concentrate with 15 ml PP and 1.5 ml MA
  5. Light Pink: Combine 3 ml MR concentrate with 15 ml PP and 1.5 ml MA

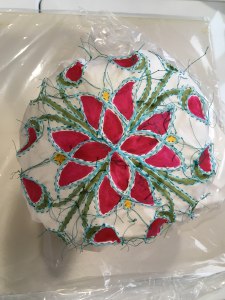

  • Paint on Fabric sections of shibori stitching

IMG_2697

  • Allow to dry for 4 hours
  • Pull center threads and tie off
  • Stitch Floss “Ties” to center of fabric to help with lifting in/out of water
  • Make Dye Concentrate: Mixing Blue 10 gm in 100 ml Urea Water (100 mg/ml)
  • Place in 4000 ml Soda Ash solution in bucket
  • Add dye concentrate at 5 minute intervals (10 ml, 10 ml, 10 ml, 10ml, 40 ml) = 0.25, 0.5, 0.75, 1.0, 2.0 mg/ml to create an ombre effect
  • Lift fabric a small amount after each dye increment

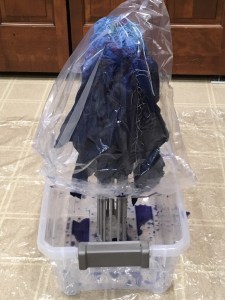

  • Prop fabric up on support dripping into empty bucket, cover with plastic bag

IMG_2699

  • Batch for 4 hours

IMG_2701

  • Clip and remove all sewing lines
  • Wash with Blue Dawn, Dry and Iron

IMG_2852

  • Quilt as planned

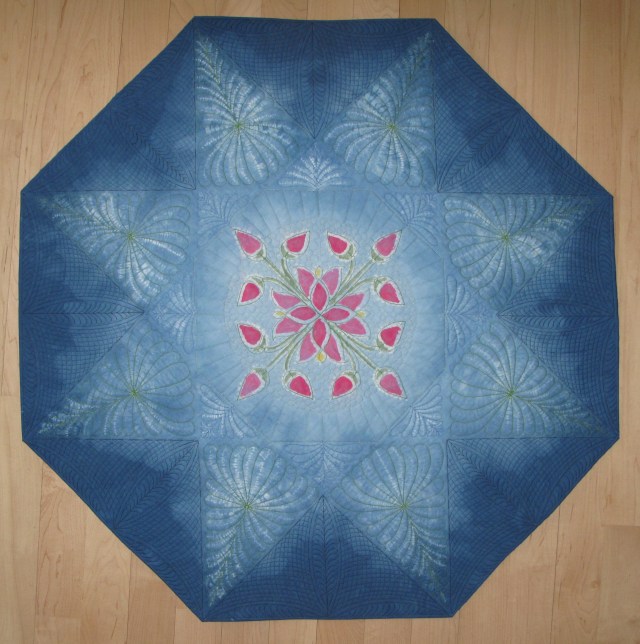

IMG_2942

Lessons Learned:

  • Paint center dye before pulling tight the outer threads – easier than having to paint on a bubble
  • If you forget the first step – sealed air packs work well to fill the bubble for painting

IMG_2700

  • Fabric will trap air, creating a bubble, in the middle – easy to keep the center section out of the dye bath.
  • Use a color of thread different from the color of dye – makes it easier to remove the threads.
  • The fabric dye paint did not turn out as well as I had hoped.  So, after quilting, I repainted the fabric dye without Print Paste for a smoother look



I entered this quilt in the Minnesota State Fair on a whim to see what the judges comments would be regarding the shibori  and hand painting technique.  Boy was I surprised that it was awarding a blue ribbon!



Dyed Fabric Strip Quilt

IMG_3010

One of my original posts on this blog was about fabric dyeing (Sept 22, 2015).   At that time, I mentioned that I had watched a Craftsy class about dyeing fabric.  Before jumping in and buying numerous colors of dye and supplies, I decided to try a sample kit.
The purchased a gradation dyeing kit which was a smart decision.  This kit gave me the opportunity to try my hand at mixing dyes to get different colors, as well as working with low volumes and how to best handle the fabrics.
The first color kit I purchased was “STONES & SHELLS”. Stones&Shells
Colors included were: Camel 5181, Old Rose 5220 & Stormy Grey 6160
Following the directions, I created thirty fat eights in a gradation of earth tones.  While the samples were fun to make, I had no idea what to use them for.  So,  these pieces of fabric have been sitting on my shelf waiting for some inspiration.  Earlier this year when I was doing some strip quilting, I decided that a strip quilt might be a good use of these fabric as well.
To add some pops of color, I dyed three fat quarters of cotton fabric using a variety of techniques – marbling, sun dyeing and batch dyeing.  For the sides and the backing, I dyed a three yard piece of 108″ wide cotton with a evergreen dye.
The gradation fabrics were cut into 2.5″ x 20″ strips.  These were then sorted by color and then   The green pops of color were cut into 2 1/2″ x 5 1/2″ pieces.  The strips were then sewn together with dark green on each side.  After sorting the gradation fabrics, I split them into three groups and pieced starting with the first color of each group.  This allowed for the fabrics to be distinct rather than blending from one gradient to the next.
The quilt top was then put together using my long-arm machine just like a did with the black strip quilt earlier this year (May 8, 2019).
Another fun quilt to donate.  And, more fabric used from my stash!

Butterfly Art Quilt – Custom Dyed Background and Backing

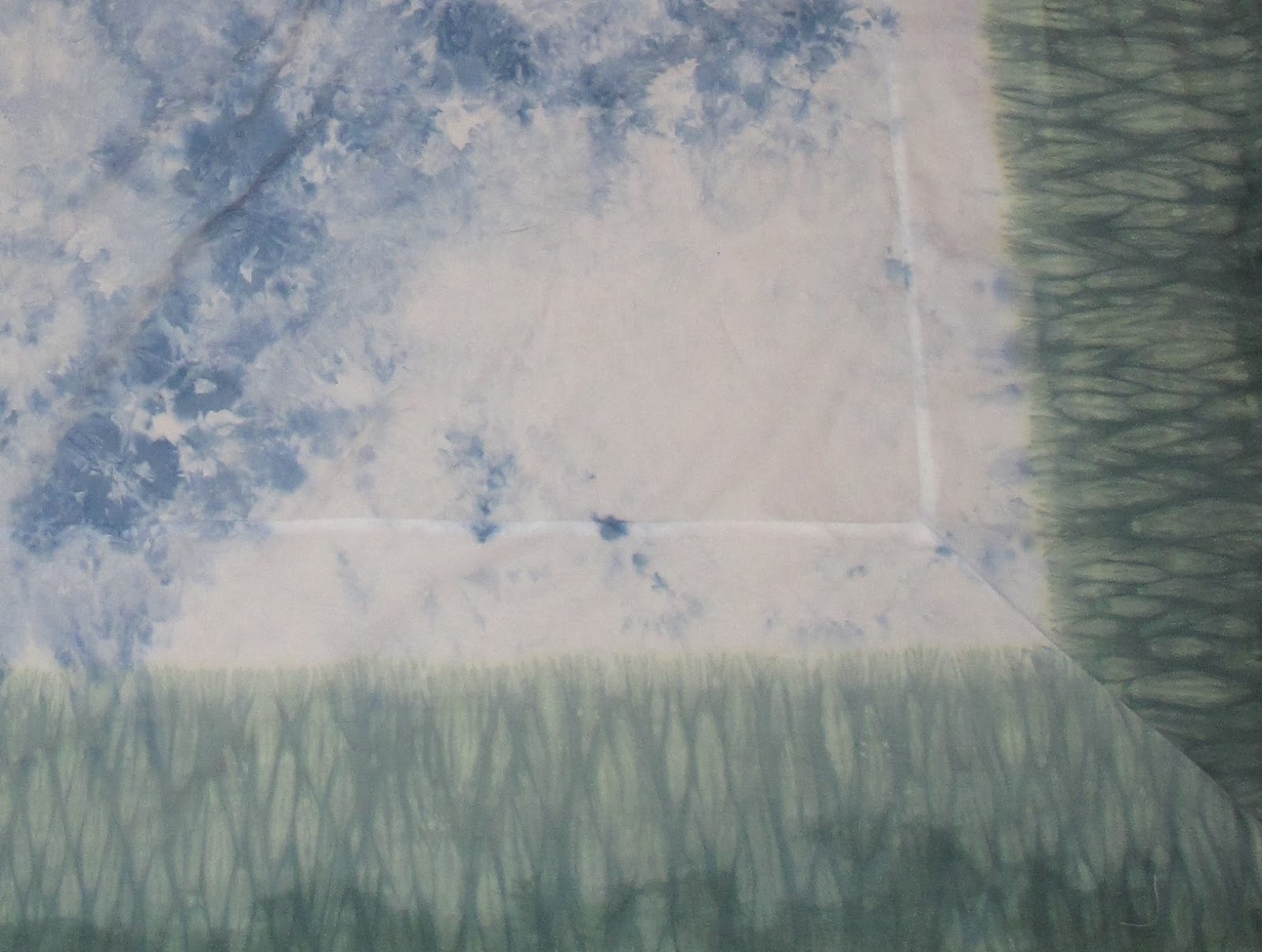

After my butterflies were all cut, it was time to create the background fabric that they will be appliqued onto.  Inspiration – my garden (ie: grass and blue sky).

For this edge of the fabric, I am hoping to create something that looks like grass, using the Shibori technique.  For the sky, I am thinking that ice dyeing with blue might work well. Ice dyeing is similar to snow dyeing but with ice cubes instead of snow since it is summer here in Minnesota.  So, I setup to do some more fabric dyeing

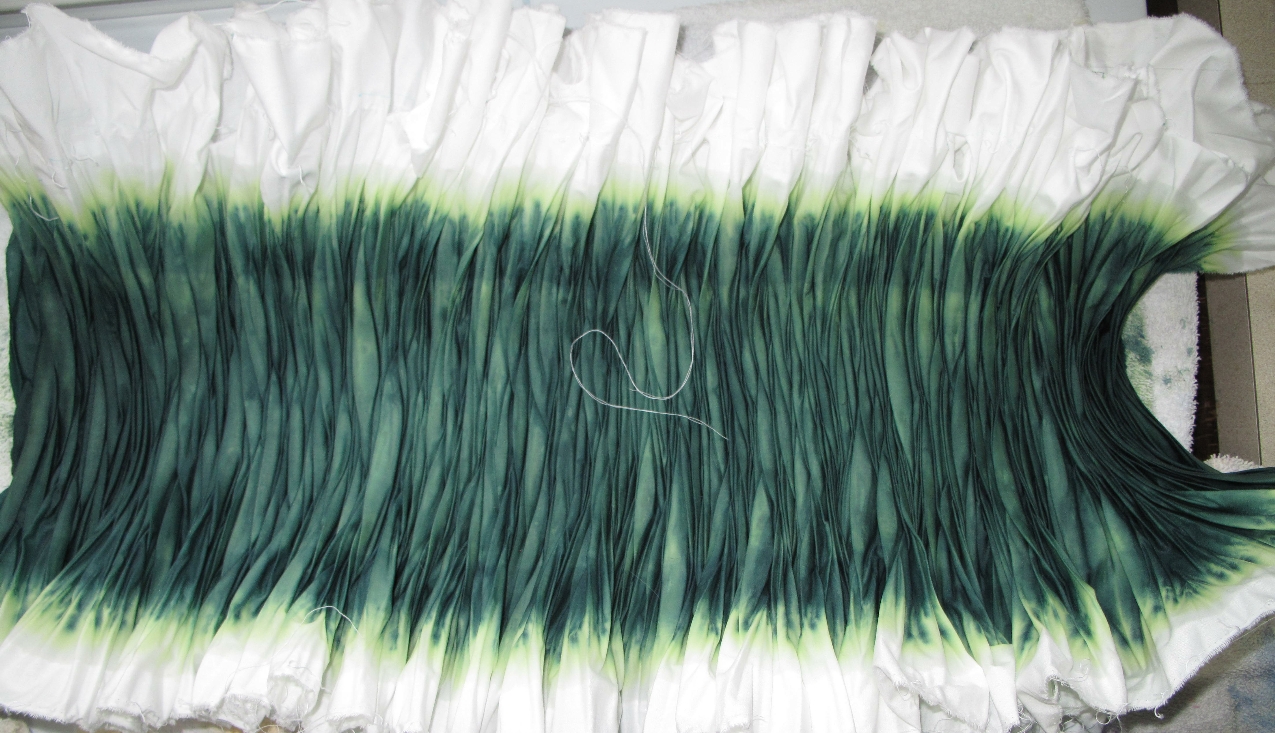

Green Grass edge:
1. Cut 4 yards of Combed Cotton (Dharma Trading Company) lengthwise into three strips 144″ x 15″.
2. Sew each strip into a long tube (using a basting stitch) and scrunch onto 4″ x 24″ PVC pipe.
3. Place the fabric tube into wallpaper water tray that contains 750 ml Emerald Green Dye (2 mg/ml concentration) for 10 minutes.
4. Remove the fabric from the dye, place on paper towel to absorb excess dye solution, then wrap in plastic and batch for 4 hours.
5. Remove the stitching, rinse with cold water and wash with Blue Dawn.

Blue Sky Center:
1. Cut the green dyed fabric into two pieces 105″ in length and two pieces 75″ in length.
2. Sew these to the sides of a 72″ x 45″ piece of undyed Combed Cotton, making mitered corners.
3. Soak the fabric in warm water and wring out excess so that the fabric is just damp, not dripping.
4. Scrunch the undyed center fabric into a drain tray (sorry, but I didn’t take pictures of this), with the green edges hanging over this sides of the tray to keep from getting too much blue dye on the “green grass”. Place a 12′ x 15′ piece of scrap fabric over the scrunched fabric to catch any undissolved dye particles.
5. Cover the fabric with ice cubes.  I used eight trays of ice, which made the layer about 3″ thick.
6. Sprinkle with 0.5 gm Mixing Blue  and 1.5 gm Royal Blue dye powder.
7. Place the drain tray in a large plastic bucket to collect the melting ice and cover (to keep my cat out of the dye).
8. After the ice has melted (about 8 hours), pour one liter of hot Soda Ash solution over the fabric to set the dye and allow to batch for one hour.
9. Rinse out the excess dye with cold water and wash with Blue Dawn.
10. After drying, scrunch the edges of the fabric together and dip in Evergreen dye (1 liter of 2 mg/ml) to create a darker green edge.
11. Batch for four hours, rinse and wash.

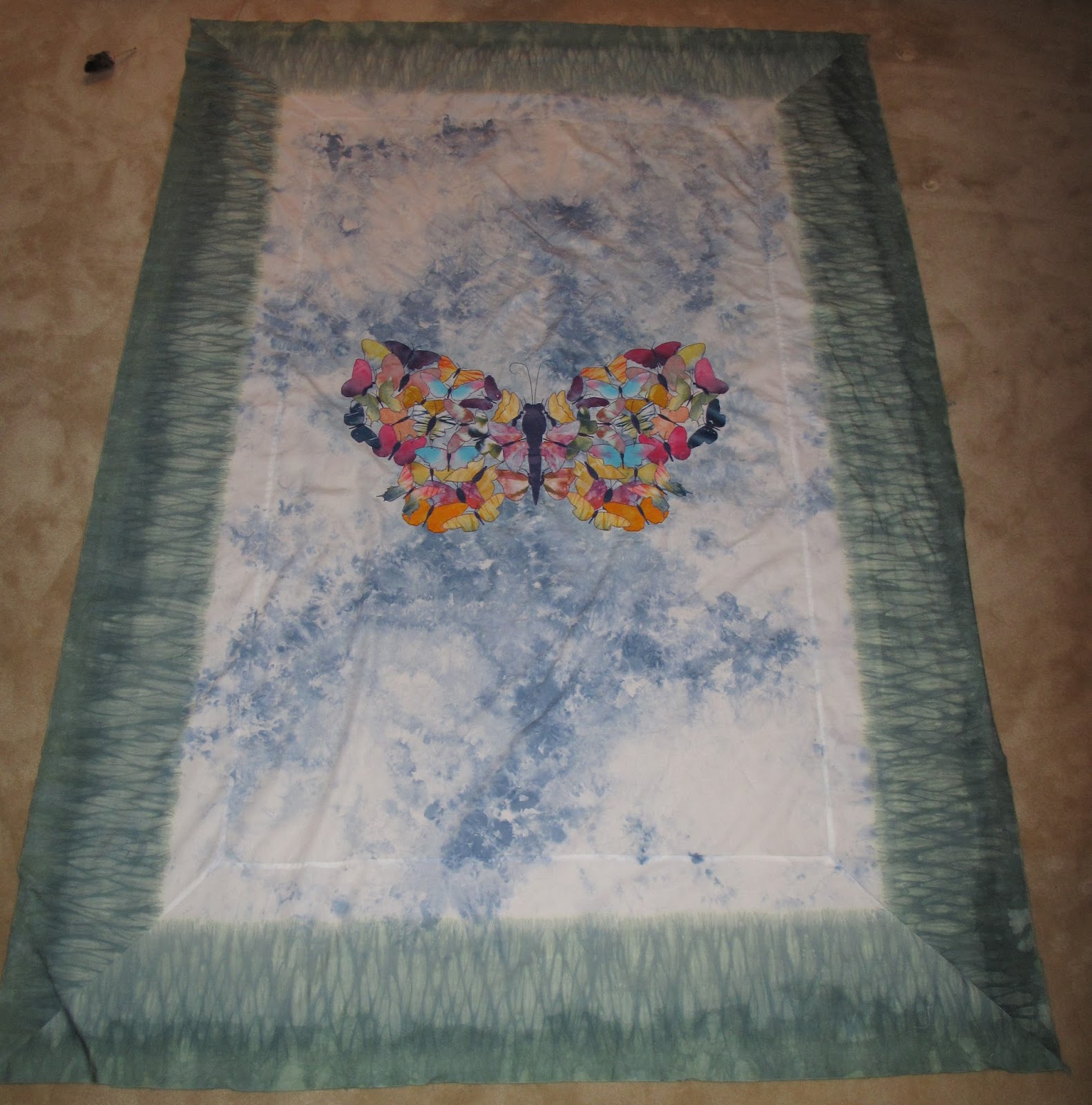

The background fabric was now ready to applique the butterflies.  I used a variagated silk thread for the applique (Tiara #705 Silk, Superior Threads).

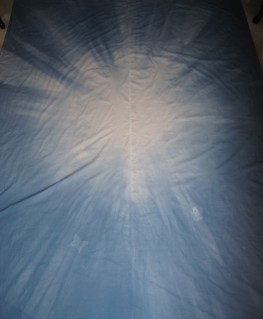

For my backing fabric, I wanted to complement the quilting that I was planning for the top of the quilt. To do this, I thought I would try to ombre dye the fabric.  As an added detail, I decided to first use dye magnet and dye blocker to make some butterflies that would appear in the dye.

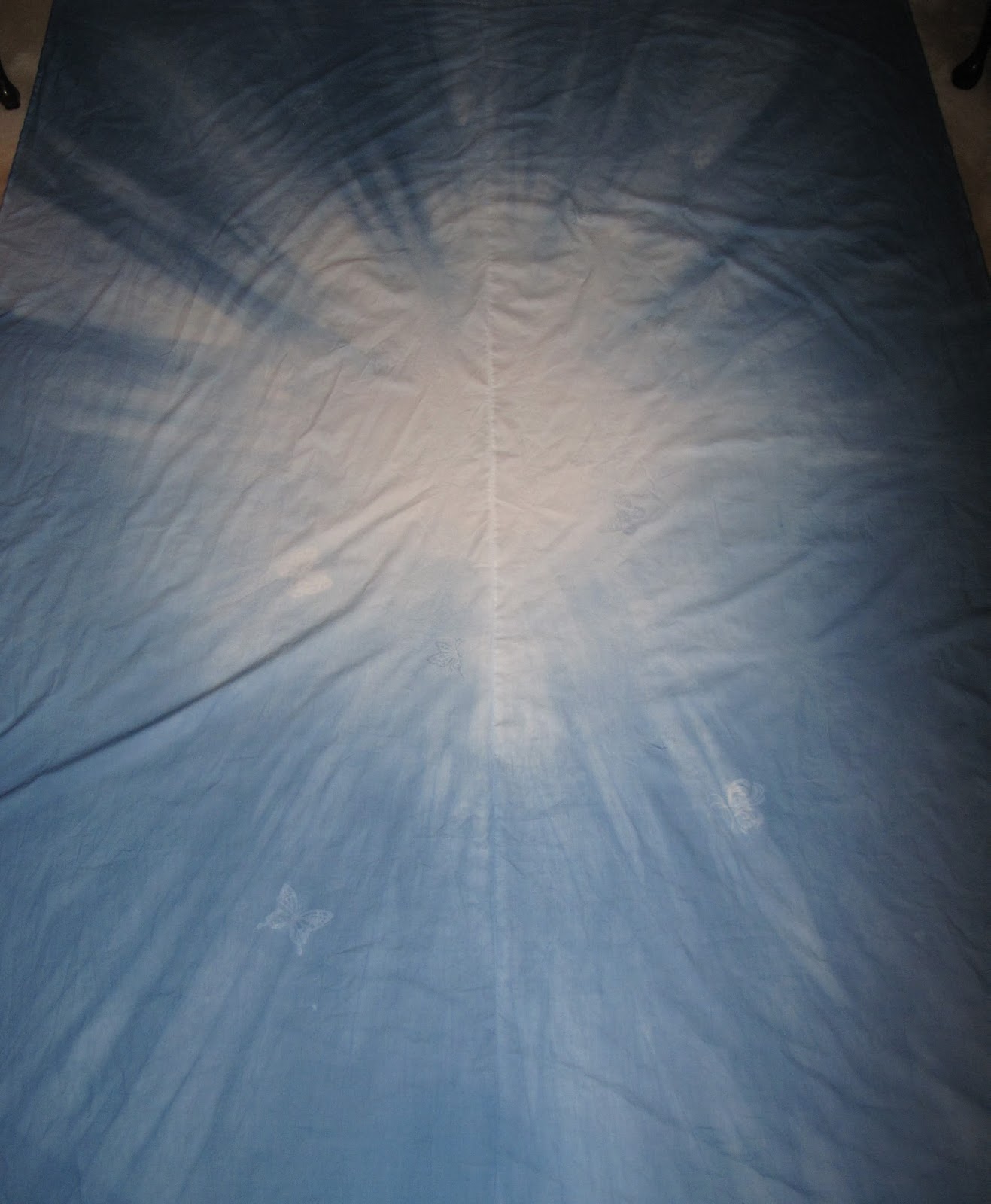

Backing Fabric:
1. 80″ x 110″ Combed Cotton
2. Cut butterfly stencils out of adhesive vinyl using my Cameo stencil cutter.

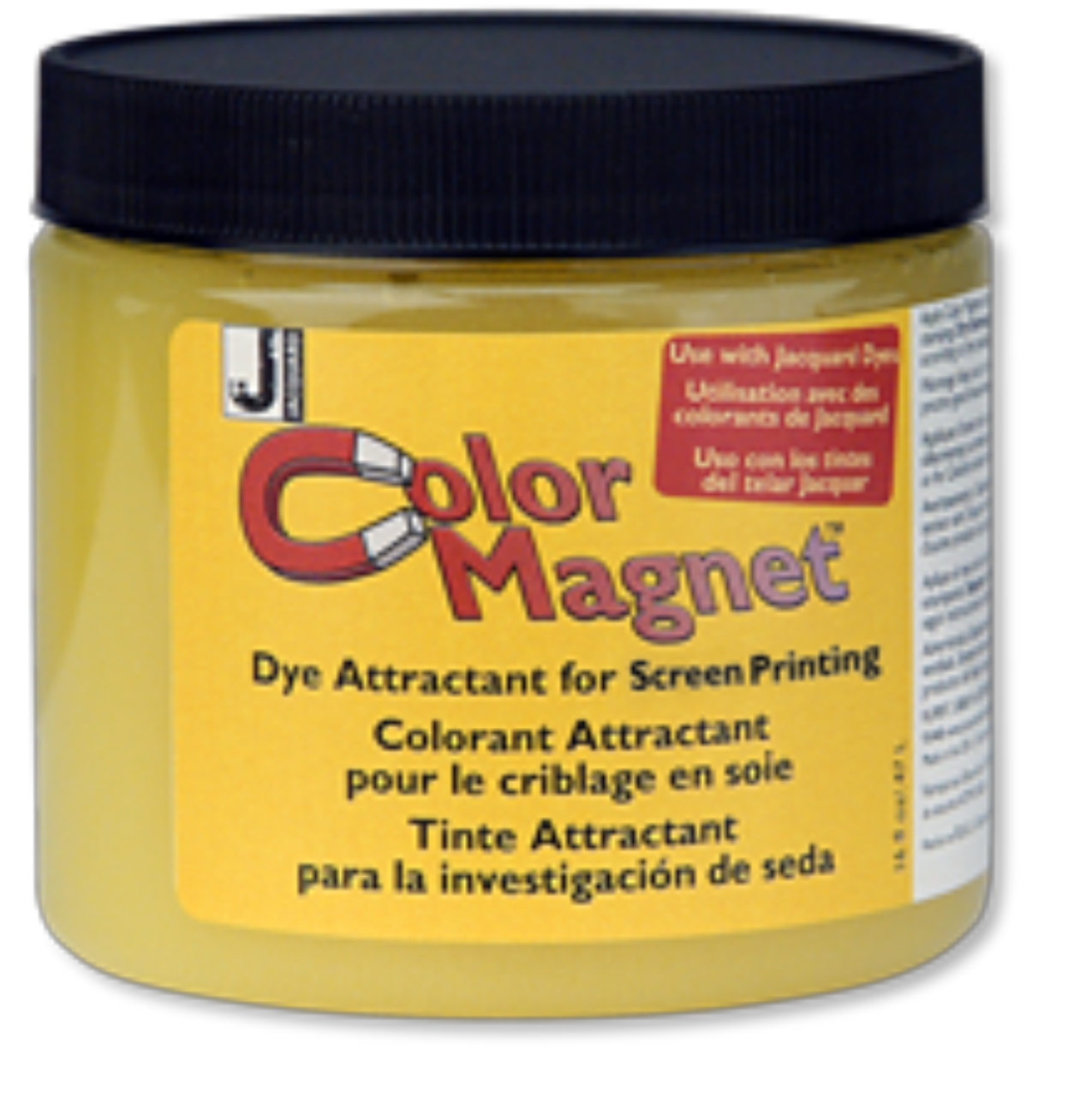

3. Paint dye magnet near the center of the fabric to create five butterflies that will be darker than the dyed background color in those areas.
4. Paint dye blocker (Nori Glue) in the outer part of the fabric to  create five butterflies that will be white the the darker areas of the fabric. Allow both magnet and blocker to dry completely overnight.
5. Pull the center of the fabric together and secure to a wooden pole, similar to that described for ombre dyed sheers.
6. Fill a 4 gallon bucket with 8 liters of hot soda ash solution.
7. Add 1ml dye solution (200mg concentrate) and dip fabric to about 4″ from center fabric attached to pole.
8. Remove fabric, add more dye concentrate and dip the fabric again but this time stopping 4″ less than previously dipped. Repeat this process stopping 4″ shorter each time. Dye concentrate amounts used were 1,1,2,2,5,5,8,8,10,10,20,20 ml of 200 mg/ml solution.
9. Allow to hang and batch, with excess dye dripping off, for two hours.
10. Dip fabric in 4 liters of dilute Retayne and hang again for 20 minutes to allow the dye to set to the fabric.
11. Rinse out excess dye with cold water and wash with Blue Dawn.

I am now ready to load this quilt onto my longarm machine and start the custom quilting process.

Butterfly Art Quilt

As a pediatric dentist, I see lots of kids with interesting clothing selections.  Some have mismatched colors, some have their shirts on backwards (or their shoes), but some are absolutely adorable.  Last winter, one of my younger patients (she was a little over 3 years old) came in with a t-shirt on that had a large butterfly printed on it.
Now, I love butterflies – with their beautiful colors and graceful wings. This little girl was fearful of having me check her teeth, so I tried to help her relax by talking to her about her t-shirt.  Turned out that she liked butterflies too and gladly started showing me her t-shirt.  On closer inspection, this large butterfly was actually made up of smaller butterflies and was really cute.  After a successful dental checkup, she left cavity free and happy!
Since it was a busy day, I didn’t think more about the patient until my lunch break when my staff commented that they were happy she overcame her fears and was able to complete an exam and cleaning. One of my staff commented that the conversation about the butterflies may have been what helped her to relax. This conversation sparked an idea in my mind – to make a quilt with a butterfly made out of little butterflies.

http://www.missoulabutterflyhouse.org/store/

An on-line image search was unsuccessful in finding a picture of the t-shirt that matched what I remembered seeing earlier that day. I did, however, find a link to the Missoula Insectarium. In their store, they sell a t-shirt with butterflies  that I thought might be a good inspiration for my quilt.

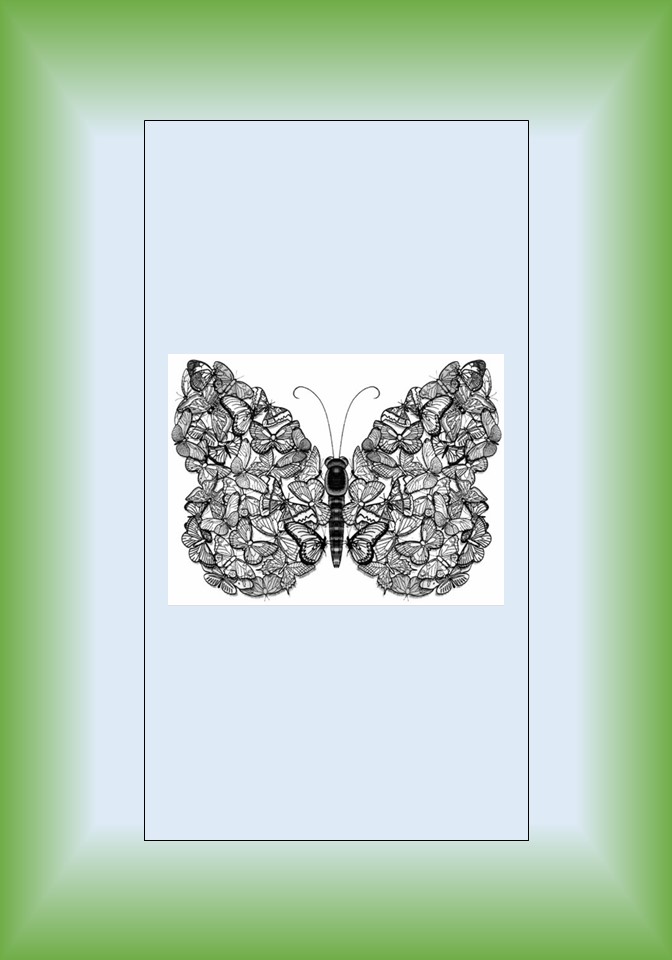

Using a graphics program, I did a quick design to see how the idea might look. This, I thought, was going to be a fun quilt to make.

Creating the applique butterflies:
Using the graphics program, I cropped the butterfly image around each of individual butterflies.  In doing this, I found that several of the butterflies were about the same shape.  So, I actually only had 12 different butterflies to work with.  Using the Bernina DesignWorks software, I created a Cutwork and Applique file for each butterfly.

For my fabrics, I used the samples from my many trials of fabric dyeing – shibori, mandala, etc).  These fabrics had symmetrical colorings and patterns that worked well for butterfly wings.

More on this project in my next posting…

Ombre Dyed Sheers


My eldest son lives in San Francisco and recently moved into a new apartment.  His room is quite large and has a beautiful bay window where he has his desk situated.  He enjoys this desk placement with lots of sunlight flooding him when he is working and a nice view out the window.



At certain times of the day, the sun shines directly into his eyes, making working at his computer a bit difficult. He attempted to remedy this problem by putting up some sheers that would block the sun, but still allow some light into the room.

Unfortunately, the sun was still too bright in the late afternoon.  So, when the sheers did not solve his problem, he sought another solution.  His idea was to find some Ombre dyed sheers that were dark grey on the top and transitioning to white on the bottom.

Due to the size of the window, the only ones that he could find were nearly $600. Before he purchased these, he sent me a message to seek my advice about whether this was a good idea. Having recently tried out ombre dyeing of scarves, I thought that the price might be a bit high and offered to make some sheers for him.

Supplies:
Mid-weight Linen (Dharma Trading) 54” wide, 5.1 oz per yard
Wooden dowel, 5 ft length
Support rods – I used two camera tripods with a board attached to the top.
Dye – Black Silk, Jet Black
Unsoftened water, 12 gallons
Soda Ash, Salt
Retayne

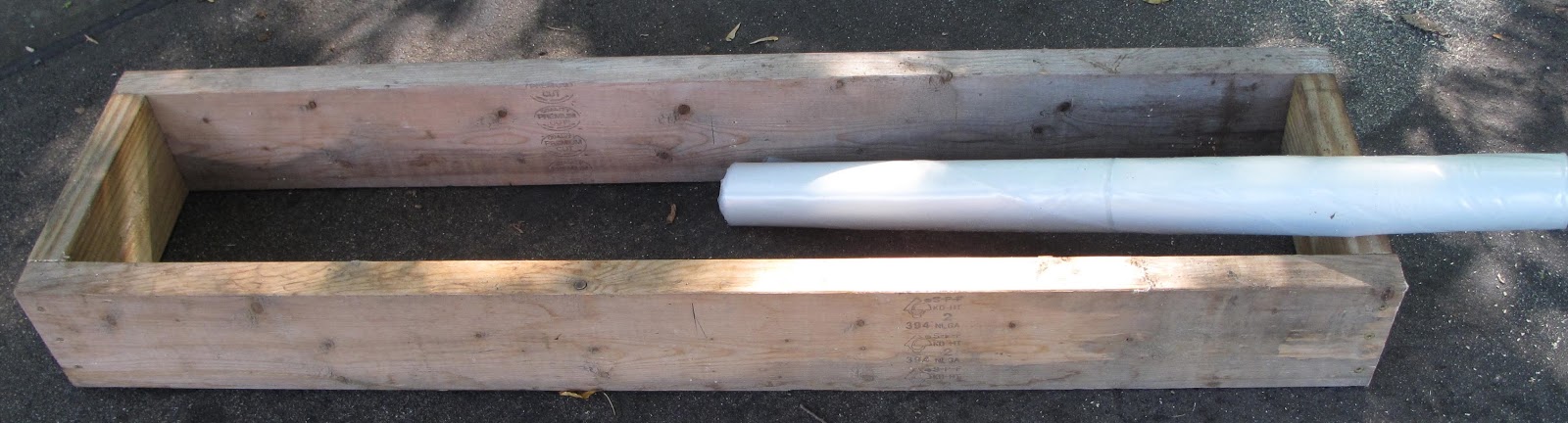

Dye Vat:
2 x 6 Cedar, 48” x 2
2 x 6 Cedar, 12” x 2 – screw to ends of 48”
Heavy duty plastic stapled to wood to create dye vat 48” x 9″
Trial Day One:
Cut fabric to 90” length
Sew 1” doubled rod sleeve at one end
Pin opposite end to wooden dowel, roll up extra fabric (cover extra fabric with plastic bag to keep dye from splattering on white end of fabric)
Mark fabric with pin at 8” and then every 4” up to 48” from rod sleeve
Set up tripods at 6 feet height with board attached
Fill dye vat with 4 gallons hot soda ash solution
Add Black Silk dye (250 mg/ml concentrate) – 1,1,2,4,4,8,8,10,10,20,20 ml
Dip fabric to farthest pin, hang and move out of the way
Add next dye quantity (see above) and repeat until all dye has been added
Hang to dry and batch for 2 hours

Wash with Blue Dawn in hot water

Lesson learned – Black silk dye on linen washes out to a blueish color

Trial Day Two:

Question – does a mixed of two different black dyes keep the gray color better?
Followed the same technique as above, but mixed two different black dyes
Black Silk (250 mg/ml concentrate) – 50 ml, mixed with
Jet Black (250 mg/ml concentrate) – 50 ml
Add dye (250 mg/ml concentrate) –  1,1,2,4,4,8,8,10,10,20,20 ml

Wash with Blue Dawn in hot water

Lesson learned – when working outdoors, monitor the wind to make sure that the fabric does not blow down and land on the dirty driveway, and Jet Black dye leaves a reddish tint to the un-dyed fabric.

Trial Day Three:
Question – does spraying the dye on work better? does washing in cold water keep the color from fading
Pin white end of fabric to clothes line

Mark fabric with pin at 8” then at 4” intervals up to 48” from rod sleeve
Spray fabric with hot soda ash solution to saturate bottom 48” of hanging fabric
Dilute 7.5 mg Black Silk dye in 1000ml SA solution
Spray 200ml on bottom 8”
Add 200 ml SA and spray next 4”
Repeat and continue up to 48”
Let batch for 2 hours
Wash with Blue Dawn in cold water
Lesson learned – spraying caused distinct lines to be visible on the fabric, but the cold water did help slightly.
Trial Day Four:
Question – does Retayne help set the gray color better?
Follow the same technique as Day One
Batch for two hours
Dilute 1 T Retayne in 1 gallon hot water, dip the dyed fabric for 5 minutes
Hang and allow to set for 20 minutes

Wash with Blue Dawn in cold water

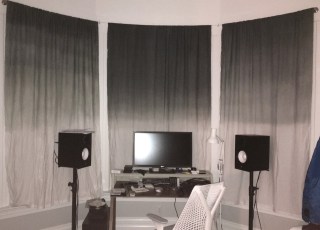

Lesson learned – this is the center panel in the photo above and was by far the best result!!

Ombre Dyeing (Gradient Dyeing)

Ombre dyeing gives a nice subtle, ethereal look to fabrics.  It looks harder than it actually is.

Supplies:
Fiber Reactive dyes (MX dyes)
Soda ash
Salt
Buckets for dye bath
Rod to hold fabric
Chairs or some sort of support to hold your rod
Rubber gloves
Pins or clamps

Technique:
1.  Wash the fabric in Blue Dawn (unless using PFD fabric).                            Note: Some instructions say to presoak the fabric in soda ash solution.  I prefer not to do this to avoid too much color wicking up the wet fabric.


2.  Use pins to mark increments along the length of the fabric.
3.  Pin the fabric to plastic hangers for easier handling.
4.  Mix up 20 ml of dye at a concentration of 100 mg/ml in Urea water
5.  Place 2000 ml of warm Soda Ash solution in a plastic container.
6.  For the lightest shade in your ombre pattern, add 2 ml dye concentrate to the soda ash solution.
7.  Wipe the inside of the dye tub to prevent unwanted dye marks on the fabric
8.  Dip fabric to the farthest pin and move up and down several times.
9. While holding the fabric above the dye tub, add 2 ml of dye concentrate and mix well.
10.  Dip  the fabric the the second pin and move up and down several times.
11.  Repeat steps 9 and 10 but adding 2 ml of dye concentrate each time until ten sections are dye at increasingly darker color.
12. Pull fabric out of the dye tub and hang over a container to collect any drips.  Allow dye to batch for 2 hours.
13. Rinse the fabric in cold water, wash in Blue Dawn, dry and iron.

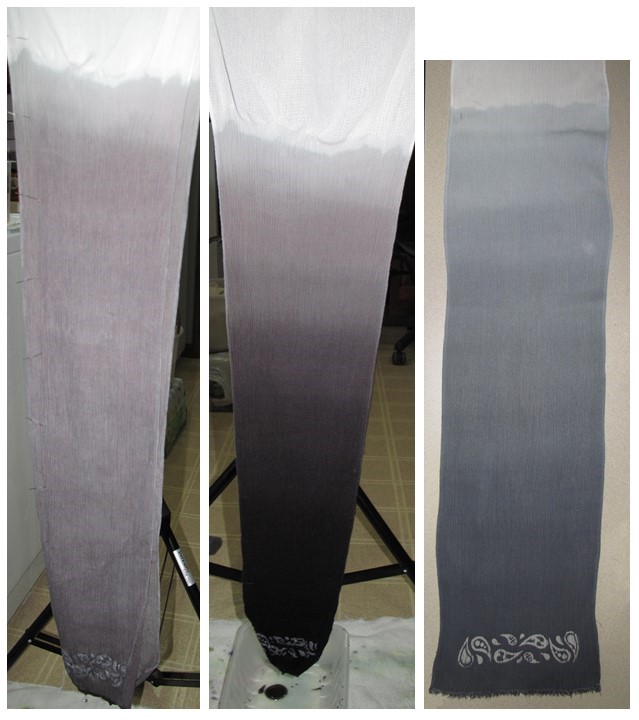

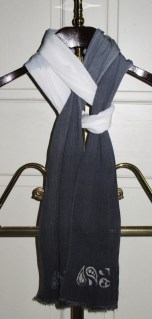

Some of my earlier posts included scarves that were ombre dyed.  Here are some images to show some additional samples of ombre dyeing.








Katazome – Stencil dyeing

Katazome, is a Japanese method of dyeing fabrics using a resist paste applied through a stencil. With this kind of resist dyeing, a rice flour mixture is applied using a brush or spatula.  Pigment, or dye, is then applied by hand-painting, immersion or both.  Where the paste mixture covers and permeates the cloth, dye will not penetrate. One of the biggest attractions of katazome was that it provides and inexpensive way for an over-all pattern.
Traditional katazome is quite labour intensive.

Traditional Katazome Stencil cutting

Stencil:
In traditional Katazome, the stencil is made by bonding multiple layers of mulberry paper together and waterproofing with persimmon tannin, resulting in a strong, flexible brown colored paper.  The intricate designs are then cut by hand with a knife. The resulting stencil is stabilized by overlaying with a fine net of silk.
This seemed way too complicated and time consuming.  So, I decided to use an existing plastic stencil for my first trial. For additional stencils, I used my Cameo to cut custom designs.

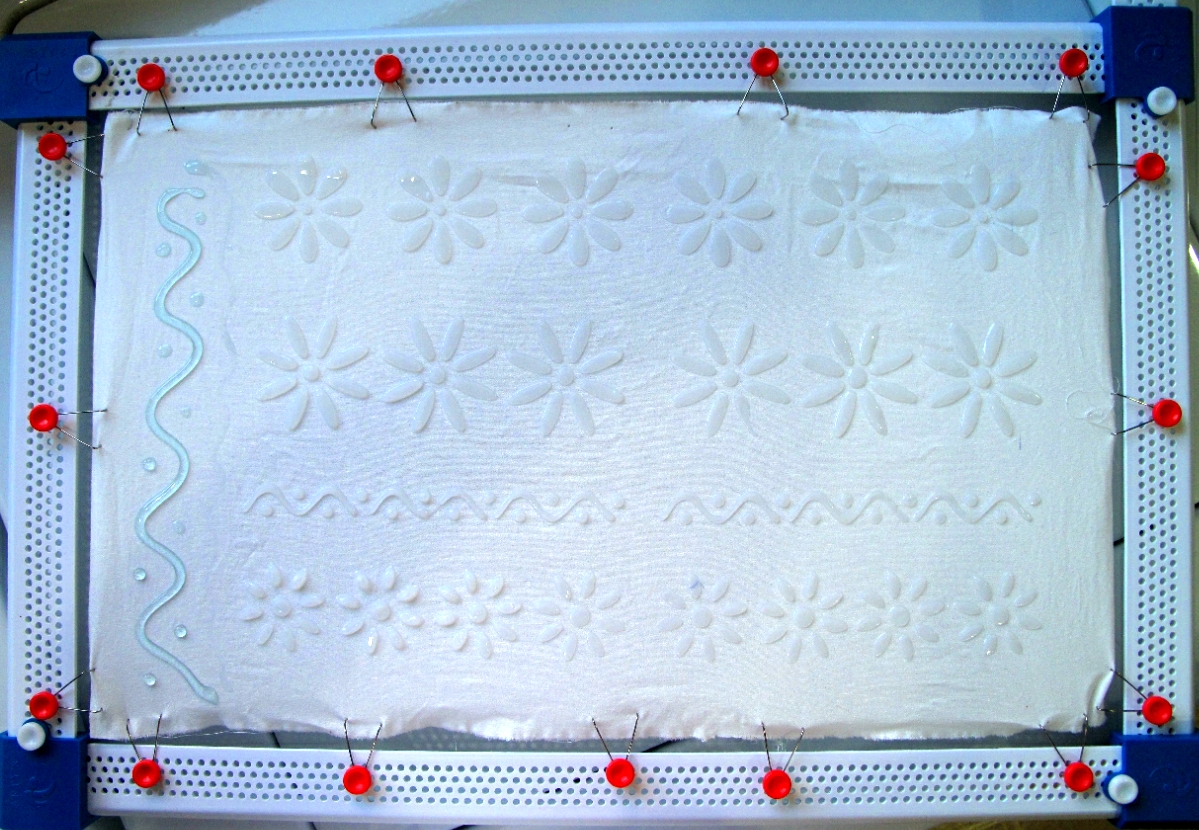

Nori Paste applied through a plastic stencil.

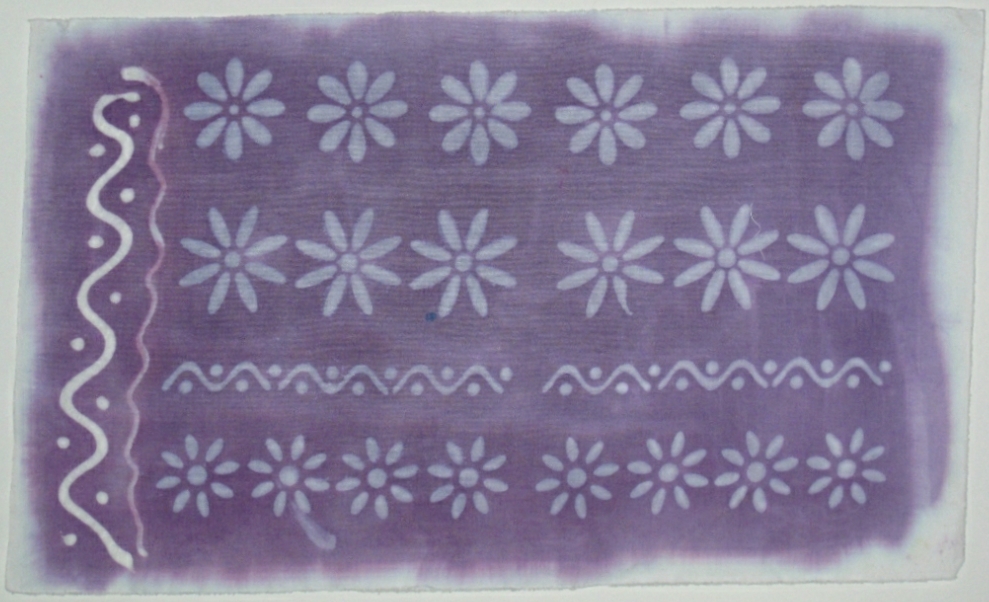

Far left shows Elmer’s School Glue drawn on.

Paste Resist:
Traditional Katazome paste is made using a complicated process (John Marshall has a very good description at http://www.johnmarshall.to/H-Resist.htm). While checking on-line for easier methods of making the paste resist, I found that Amazon carries a type of glue called Nori Glue that is made from rice and is water soluble.  I purchase some and found that it was an inexpensive, easy and satisfactory paste resist.
I also tried Elmer’s school glue.  This works well as a resist for drawing but was not a good stencil resist.

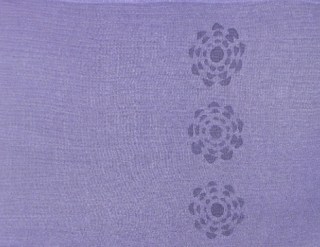

Resulting fabric after dyeing with Purple Procion dye.

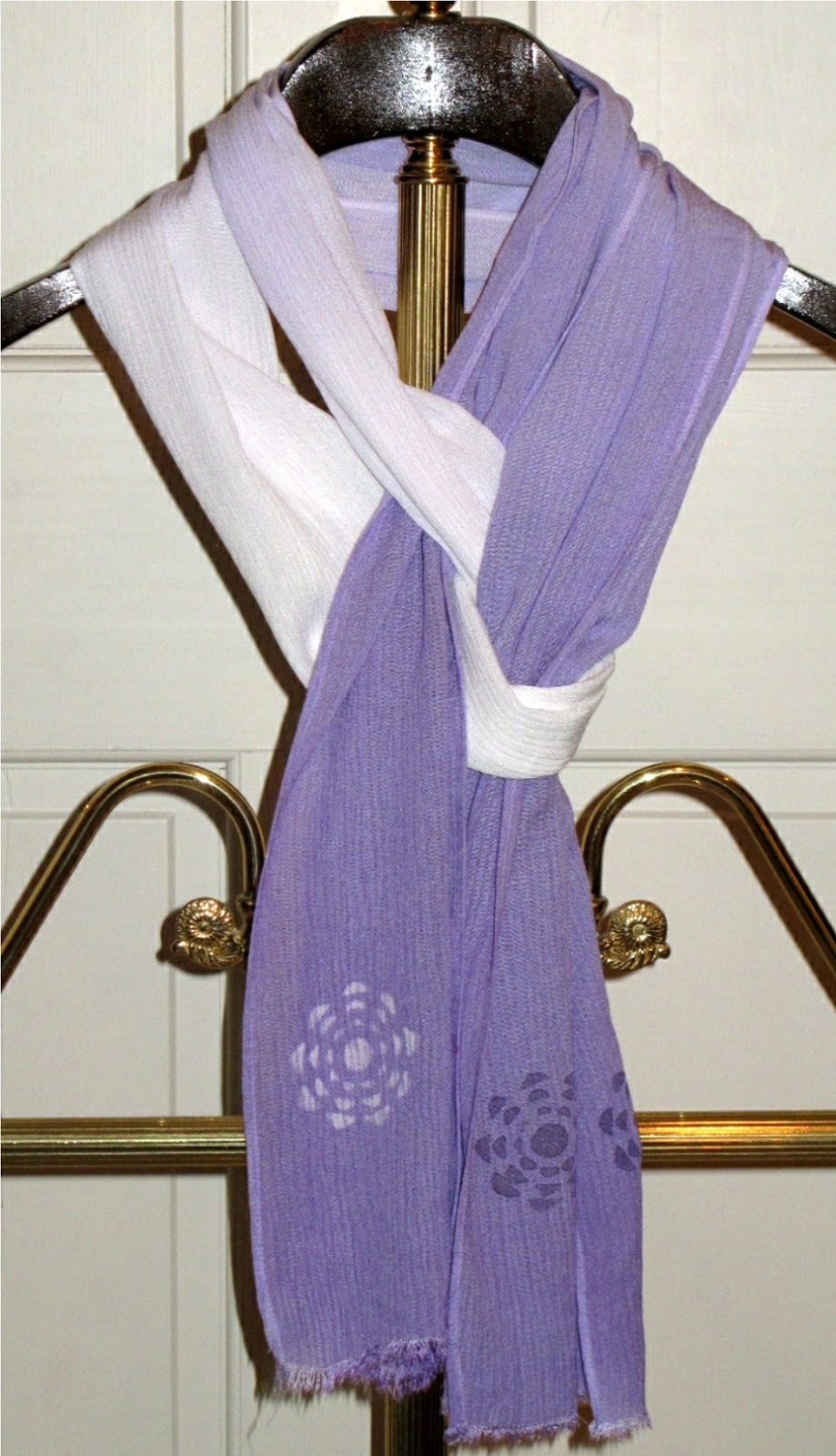

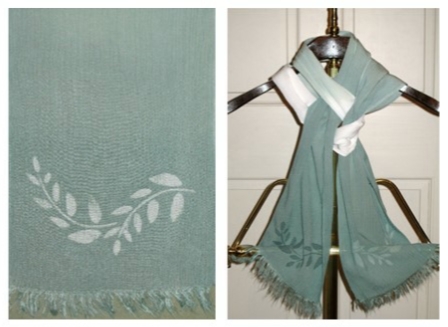

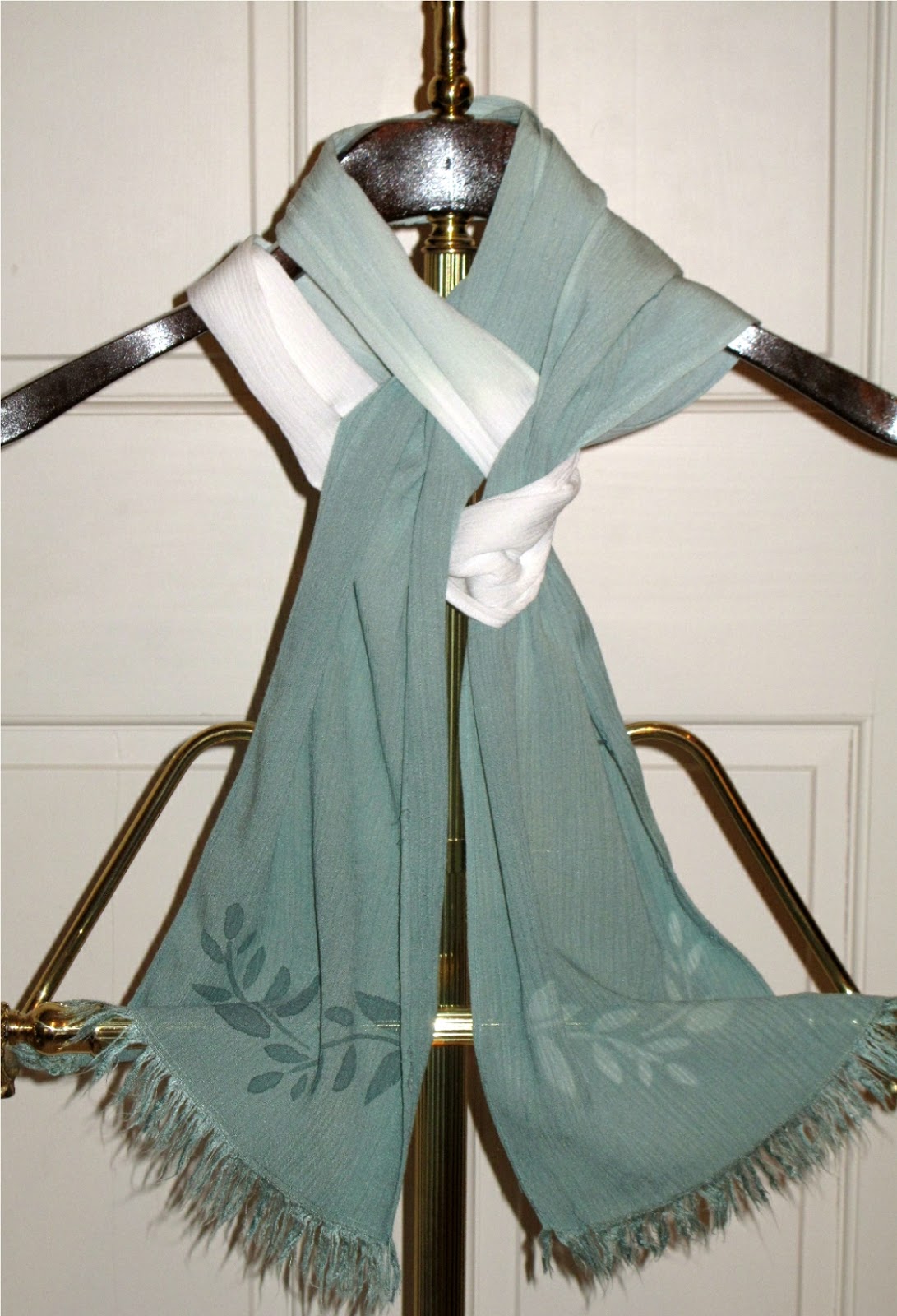

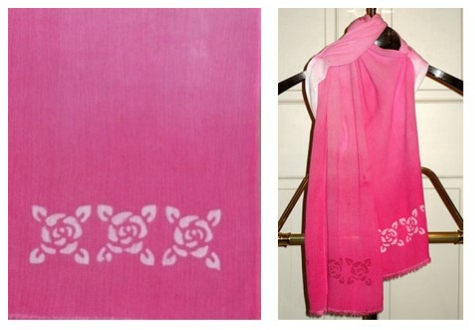

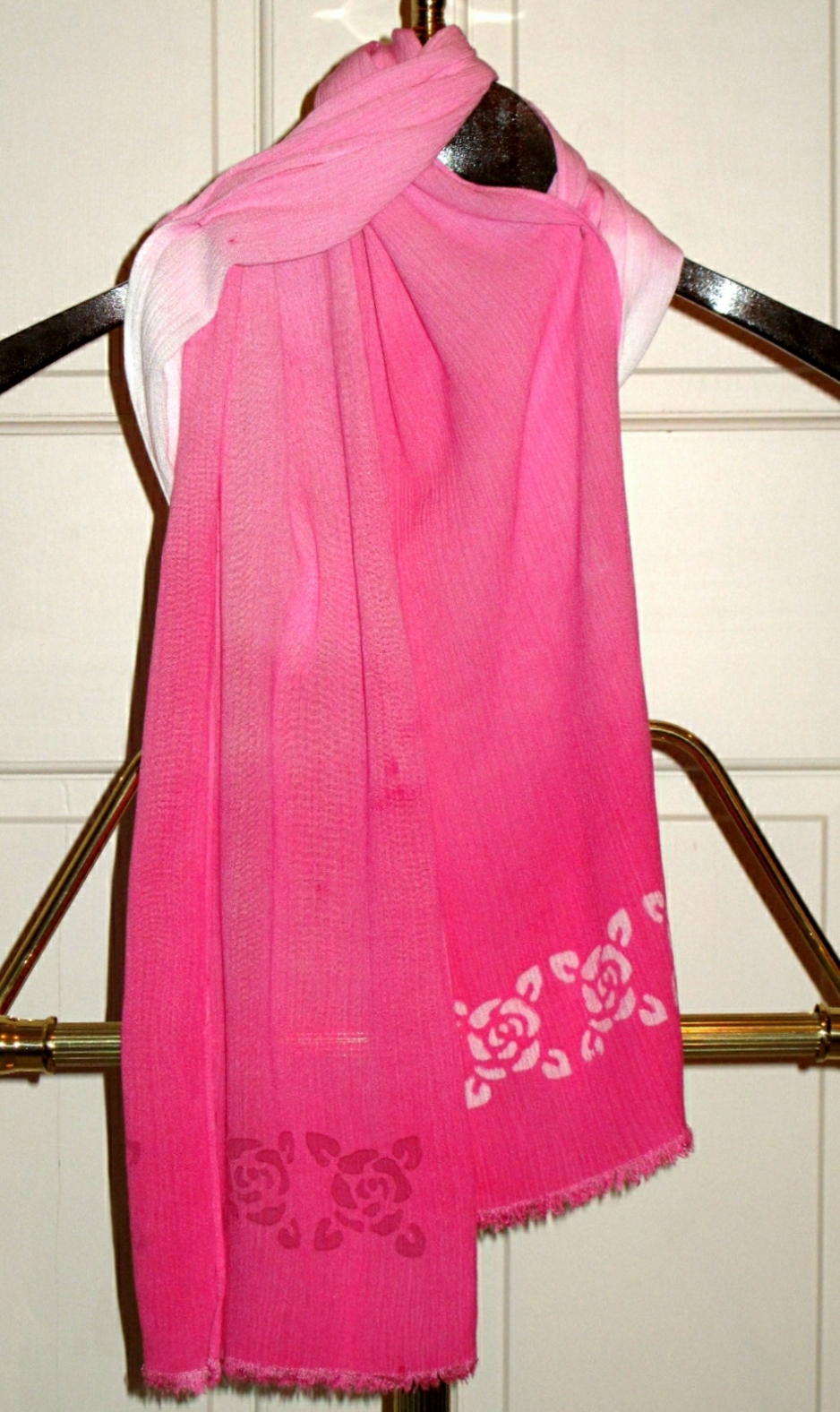

I liked this technique.  So, I decided to try making some scarves.

Custom Stencil cut with Cameo



Technique:

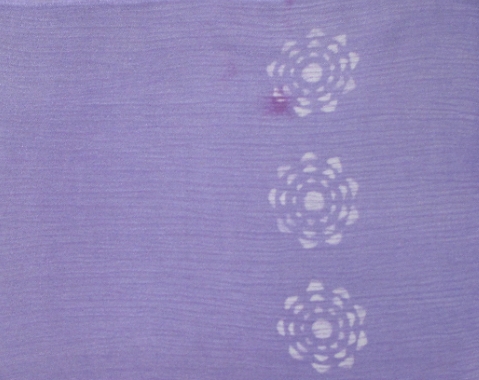

  • Rayon gauze  12″ x 90″.
  • Tape stencil and apply Nori Paste
  • Dry overnight.
  • Dip in dye (Lilac) to create Ombre effect.
  • Rinse, wash with Blue Dawn and dry.
Dyed Fabric



Resulting Scarf
Green Scarf



Magenta Scarf
